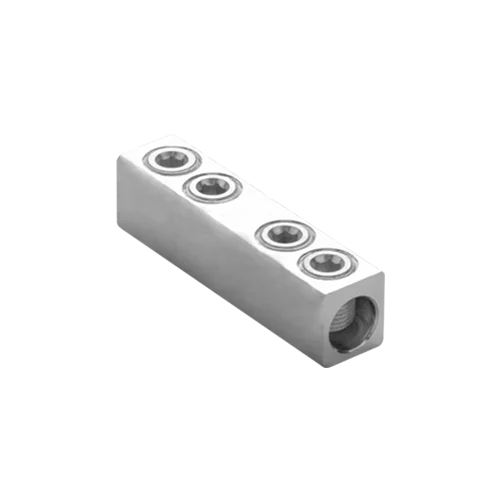

OEC 61109, Aluminum, Splicer/Reducer, Conductor Range 550 – 2, 4 Screw, Tin Plated, AL9CU
Available on backorder
| Product Description | Aluminum, Splicer/Reducer, Conductor Range 550 – 2, 4 Screw |
| Catalog ID | 61109 |
| UPC | 840449609880 |
| Application | Splicer/Reducer |
| Brand | OEC |
| Inner Box Quantity | |
| Master Box Quantity |
| Connector Type | Mechanical |
| Conductor Type | Aluminium / Copper |
| Standard Material | Aluminum |
| Standard Finish | Electro Tin Plated |
| Screw Type | Allen Hex |
| Product Length | 5.00 in |
| Product Width | 1.38 in |
| Product Height | 1.50 in |
| No of Screw | 4 |
| Voltage – Maximum | 35000 |
| Voltage Rating | 35 kV |
| Temperature Rating | 90?C |
| Conductor Size | 550 Kcmil – 2 AWG |
| AL Conductor Str Range | 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 250 Kcmil, 300 Kcmil, 350 Kcmil, 400 Kcmil, 500 Kcmil, 550 Kcmil |
| AL Conductor Str Size | 2 AWG – 550 Kcmil |
| CU Conductor Sol/Str Range | 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 250 Kcmil, 300 Kcmil, 350 Kcmil, 400 Kcmil, 500 Kcmil, 550 Kcmil |
| CU Conductor Sol/Str Size | 550 Kcmil – 2 AWG |
| cULus | Yes |
| Standard | 486A/B |
| CSA | Yes |
| RoHS | Yes |
