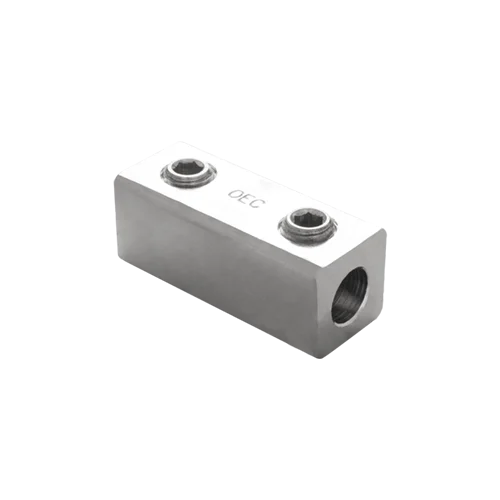

OEC 61105HD, Aluminum, Splicer/Reducer, Conductor Range 250 – 6, 2 Screw, Tin Plated, AL9CU
Available on backorder
| Product Description | Aluminum, Splicer/Reducer, Conductor Range 250 – 6, 2 Screw |
| Catalog ID | 61105HD |
| UPC | |
| Application | Splicer/Reducer |
| Brand | OEC |
| Inner Box Quantity | |
| Master Box Quantity |
| Connector Type | Mechanical |
| Conductor Type | Aluminium / Copper |
| Standard Material | Aluminum |
| Standard Finish | Electro Tin Plated |
| Screw Type | Allen Hex |
| Product Length | 1.94 in |
| Product Width | 1.00 in |
| Product Height | 1.13 in |
| No of Screw | 2 |
| Voltage – Maximum | 35000 |
| Voltage Rating | 35 kV |
| Temperature Rating | 90?C |
| Conductor Size | 250 Kcmil – 6 AWG |
| AL Conductor Str Range | 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 250 Kcmil |
| AL Conductor Str Size | 6 AWG – 250 Kcmil |
| CU Conductor Sol/Str Range | 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 250 Kcmil |
| CU Conductor Sol/Str Size | 250 Kcmil – 6 AWG |
| cULus | Yes |
| Standard | 486A/B |
| CSA | Yes |
| RoHS | Yes |
