60008AC

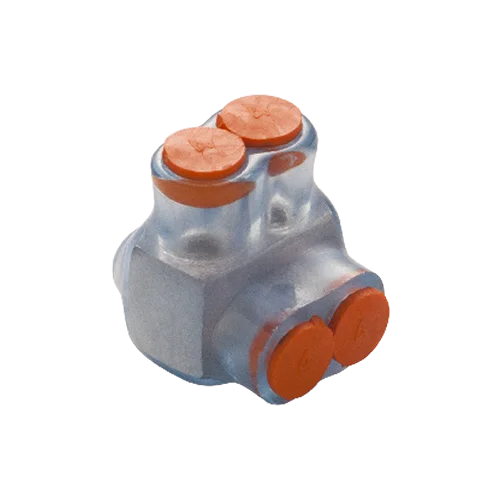

OEC Orion® 60008AC, UV Rated Clear Multi-Tap Insulated Connector, Conductor Range 500 – 6, 2 Ports, Single Sided Entry, Pre-Filled Oxide Inhibitor with Closure Plugs, Dual Rated, AL9CU

Features

  • Insulated with high dielectric access plastisol
  • Dual rated for copper and aluminum conductors
  • UL486 A/B Listed for Wire Connectors
  • Cold temperature rated up to -45°C
  • Pre-filled with oxide inhibitor prevents oxidation moisture and contaminants from
  • Supplied with removable access plugs
  • Clear insulation is UV resistant
  • Insulation uv stabilized & listed to UL94 with flammability V0

Available on backorder

CatalogSales Drawing
Compare
Category:
General Specification
Product Description #500 – 4 , Clear Multi-Tap Connector, Single Sided Entry, 2 Ports
Catalog ID 60008AC
UPC
Application For Indoor use only
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Insulated Multi-Tap
Standard Material Aluminum
Insulation Type Plastisol
Cable Entry Single Sided Entry
Number of Ports 2
Key 5/16 in Hex
Max Torque 310 in-lbs
Dimensions
Product Length 2.80 in
Product Width 2.55 in
Product Height 2.90 in
Screw Size 7/8 in
Electrical Ratings
Voltage – Maximum 600 V
Temperature Rating
Temperature Rating 90°C
Cold Temperature Rating -45°C
Conductor Related
AL/CU Conductor Size 500 Kcmil – 6 AWG
AL Conductor Range Str (Primary, Run, Main, Line) 500 Kcmil – 6 AWG
CU Conductor Range Str (Primary, Run, Main, Line) 500 Kcmil – 6 AWG
Flex Conductor Range 350 Kcmil
DLO Conductor Range 262.6 Kcmil
Certifications and Compliance
cULus Yes
Standard 486A/B
NEC 230.46
RoHS Yes
