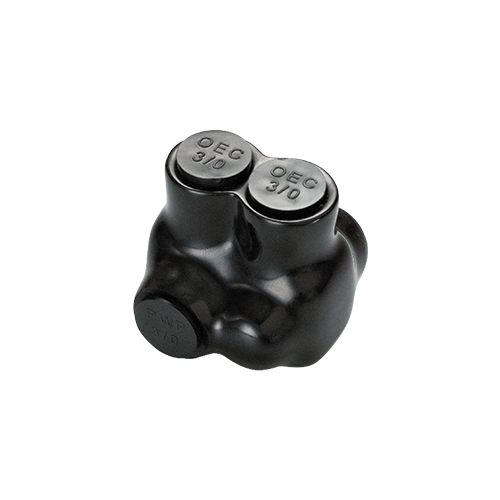

OEC Orion® 60003BZ, UV Rated Black Multi-Tap Insulated Connector, Conductor Range 2, 1.25 Ports, Alternate Entry, Pre-Filled Oxide Inhibitor with Closure Plugs, Dual Rated, AL9CU

Features

  • Insulated with high dielectric access plastisol
  • Dual rated for copper and aluminum conductors
  • UL486 A/B Listed for Wire Connectors
  • Cold temperature rated up to -45°C
  • Pre-filled with oxide inhibitor prevents oxidation moisture and contaminants from entering area
  • Supplied with removable access plugs
  • Black insulation is UV resistant
  • Insulation UV stabilized & listed to UL94 with V0 flammability

Available on backorder

Catalog
Compare
Category:
General Specification
Product Description #2, Black Multi-Tap Connector, Alternate Entry, 1.25 Ports
Catalog ID 60003BZ
UPC 840449605486
Application Connecting Tap
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Insulated Multi-Tap
Standard Material Aluminum
Insulation Type Plastisol
Cable Entry Alternate Entry
Number of Ports 2
Key Slot Head
Max Torque 100 in-lbs
Dimensions
Product Length 1.20 in
Product Width 1.38 in
Product Height Slot Head in
Screw Size 5/16 in
Electrical Ratings
Voltage – Maximum 600 V
Temperature Rating
Temperature Rating -45°C to 90°C
Conductor Related
AL/CU Conductor Size 2 – 14 AWG
AL Conductor Range Str (Primary, Run, Main, Line) 2 – 14 AWG
CU Conductor Range Str (Primary, Run, Main, Line) 2 – 14 AWG
Flex Conductor Range 4 AWG
DLO Conductor Range 4 AWG
Certifications and Compliance
cULus Yes
Standard 486A/B
NEC 230.46
RoHS Yes
