51038M

51038

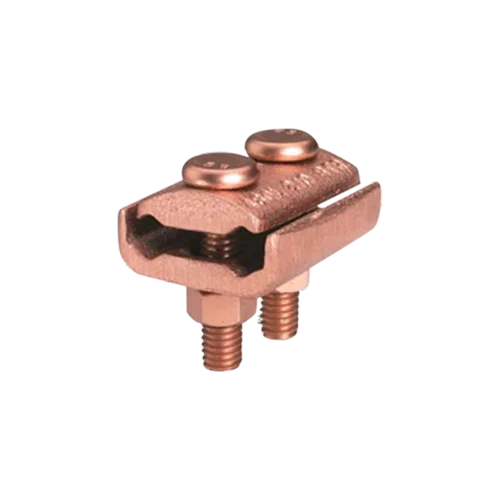

OEC 51038, Bronze, Ground Clamps Connector, Two Copper Cable To Bar, Type GL and GLM, Conductor Range 250 – 2/0, 1/2 in

Features

  • Suitable for direct burial in concrete or ground
  • Suitable for direct burial in concrete or ground

Available on backorder

Compare
Categories: ,
General Specification
Product Description Bronze, Ground Clamps Connector, Two Copper Cable To Bar, Type GL and GLM, Conductor Range 250 – 2/0,
Catalog ID 51038
Application Ground Clamp Connector
UPC
Brand OEC
Product Specification
Standard Material Copper
Standard Finish Natural
Dimensions
Product Length 5.96 in
Product Width 1.97 in
Product Height 6.69 in
Bolt Size 1/2 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
Conductor Size 250 Kcmil – 2/0 AWG
CU Conductor Size 2/0 AWG, 3/0 AWG, 250 Kcmil
CU Sol Conductor Range 2/0 AWG – 250 Kcmil
CU Str Conductor Range 2/0 AWG, 3/0 AWG, 250 Kcmil
CU Str Conductor Range 2/0 AWG – 250 Kcmil
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
