51030A

51029E

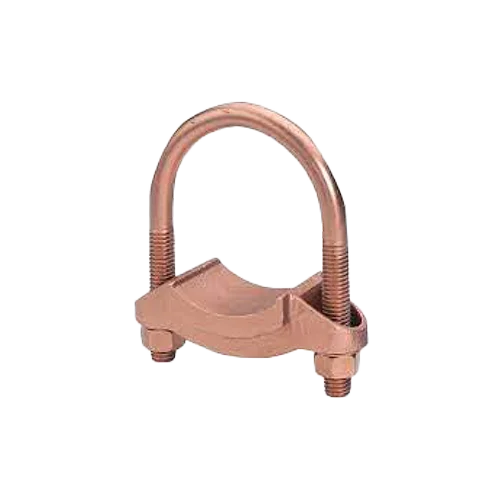

OEC 51029E, Type GG For Copper Bar Strap Braid Or Cable To Rod Or Tube, 4 in Pipe Size

Features

  • Suitable for direct burial in earth or concrete
  • Particularly effective for use with braid to ground rods, switch handles, fence Port and gates
  • For joining bar strap braid or cable to rod or tube

Available on backorder

Compare
Category:
General Specification
Product Description Type GG For Copper Bar Strap Braid Or Cable To Rod Or Tube, 4 in Pipe Size
Catalog ID 51029E
UPC
Application Grounding/Bonding Clamp
Brand OEC
Product Specification
Standard Material Copper
Standard Finish Natural
Dimensions
Product Width 6.50 in
Product Height 6.25 in
Pipe Size 4 in
Rod Size 4 – 4-1/2 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
