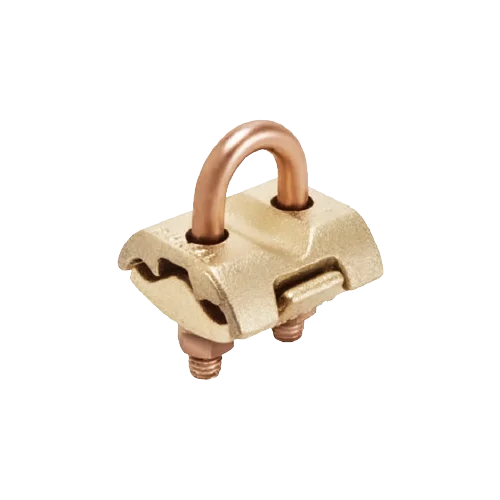

OEC 51005C, Type GP For Copper Cables To Rod Or Pipe, Conductor Range 500 – 300, 1 – 1/4 in Pipe Size

Features

  • Suitable for direct burial in earth or concrete
  • For joining a range of parallel cables perpendicular to rod, pipe or column
  • Use with one groove for run the other for tap to equipment

Available on backorder

Compare
Categories: ,
General Specification
Product Description Type GP For Copper Cables To Rod Or Pipe, Conductor Range 500 – 300, 1 – 1/4 in Pipe Size
Catalog ID 51005C
Application Ground Clamp Grounding
UPC
Brand OEC
Product Specification
Standard Material Copper
Standard Finish Natural
Dimensions
Product Length 1.85 in
Product Width 1.32 in
Product Height 3.19 in
Pipe Size 1 – 1/4 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
Conductor Size 500 – 300 Kcmil
CU Conductor Size 300 Kcmil, 350 Kcmil, 400 Kcmil, 500 Kcmil
CU Sol Conductor Range 300 Kcmil – 500 Kcmil
CU Str Conductor Range 300 Kcmil, 350 Kcmil, 400 Kcmil, 500 Kcmil
CU Str Conductor Range 300 Kcmil – 500 Kcmil
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
