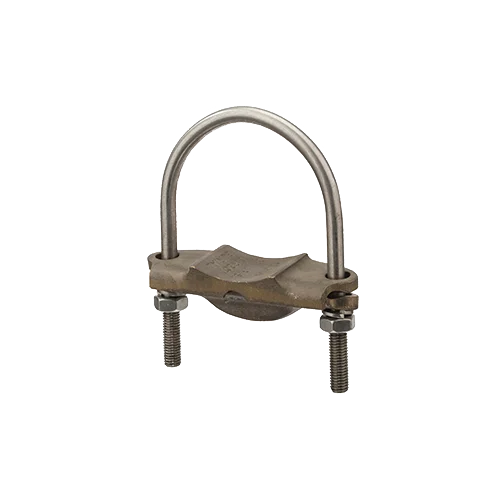

OEC 50079HD, Copper, Heavy Duty Ground Connectors, Conductor Range 250 – 4, 3 in Pipe Size
Available on backorder
| Product Description | Copper, Heavy Duty Ground Connectors, Conductor Range 250 – 4, 3 in Pipe Size |
| Catalog ID | 50079HD |
| Application | Ground Clamp Connector |
| UPC | |
| Brand | OEC |
| Standard Material | Copper |
| Standard Finish | Natural |
| Number of Ports | 1 |
| Wire Orientation | Parallel |
| Product Width | 4.88 in |
| Product Height | 5.62 in |
| Rod Size | |
| Pipe Size | 3 in |
| Thread Size | 3/8 in |
| Voltage – Maximum | 35000 |
| Voltage Rating | 35 kV |
| Temperature Rating | 90°C |
| Conductor Size | 250 Kcmil – 4 AWG |
| CU Conductor Size | 4 AWG, 3 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 250 Kcmil |
| CU Sol Conductor Range | 250 Kcmil – 4 AWG |
| CU Str Conductor Range | 4 AWG, 3 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 250 Kcmil |
| CU Str Conductor Range | 250 Kcmil – 4 AWG |
| cULus | Yes |
| Standard | 467A/B |
| CSA | Yes |
| RoHS | Yes |
