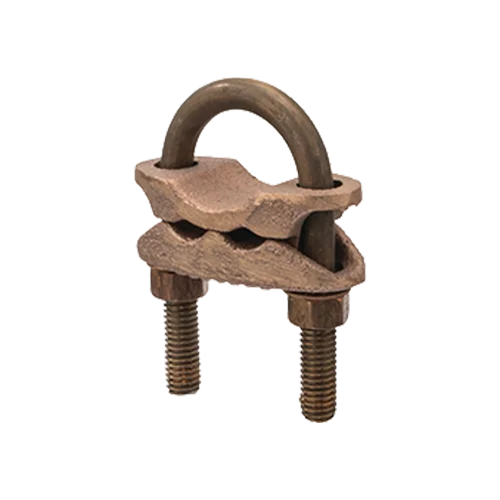

OEC 50073DH, Heavy Duty Ground Connector For Two Parallel Copper Cables, Conductor Range 250 – 4, 1 – 1/2 in Pipe Size
Available on backorder
| Product Description | Heavy Duty Ground Connector For Two Parallel Copper Cables, Conductor Range 250 – 4, 1 – 1/2 in Pipe Size |
| Catalog ID | 50073DH |
| Application | Ground Clamp Connector |
| UPC | 840449610183 |
| Brand | OEC |
| Standard Material | Copper |
| Standard Finish | Natural |
| Number of Ports | 2 |
| Wire Orientation | Parallel |
| Product Width | 4.00 in |
| Product Height | 3.25 in |
| Pipe Size | 1 – 1/2 in |
| Thread Size | 3/8 in |
| Voltage – Maximum | 35000 |
| Voltage Rating | 35 kV |
| Temperature Rating | 90°C |
| Conductor Size | 250 Kcmil – 4 AWG |
| CU Conductor Size | 4 AWG, 3 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 250 Kcmil |
| CU Sol Conductor Range | 250 Kcmil – 4 AWG |
| CU Str Conductor Range | 4 AWG, 3 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 250 Kcmil |
| CU Str Conductor Range | 250 Kcmil – 4 AWG |
| cULus | Yes |
| Standard | 467A/B |
| CSA | Yes |
| RoHS | Yes |
