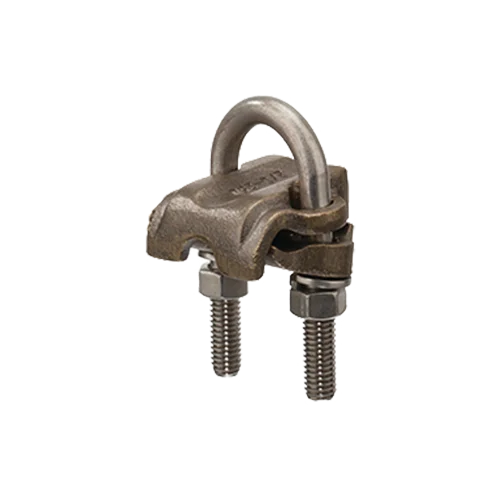

OEC 50067, Copper, Heavy Duty Ground Connectors, Conductor Range 250 – 2/0, 7/8 – 1 in Rod Size, 1/2 or 3/4 in Pipe Size

Features

  • One conductor design
  • Suitable for direct burial in earth or concrete

Available on backorder

Compare
Categories: ,
General Specification
Product Description Copper, Heavy Duty Ground Connectors, Conductor Range 250 – 2/0, 1/2 or 3/4 in Pipe Size
Catalog ID 50067
Application Ground Clamp Connector
UPC 840449609965
Brand OEC
Product Specification
Standard Material Copper
Standard Finish Natural
Number of Ports 1
Wire Orientation Parallel
Dimensions
Product Width 2.32 in
Product Height 2.27 in
Rod Size 7/8 – 1 in
Pipe Size 1/2 or 3/4 in
Thread Size 3/8 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
Conductor Size 250 Kcmil – 2/0 AWG
CU Conductor Size 2/0 AWG, 3/0 AWG, 250 Kcmil
CU Sol Conductor Range 2/0 AWG – 250 Kcmil
CU Str Conductor Range 2/0 AWG, 3/0 AWG, 250 Kcmil
CU Str Conductor Range 2/0 AWG – 250 Kcmil
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
