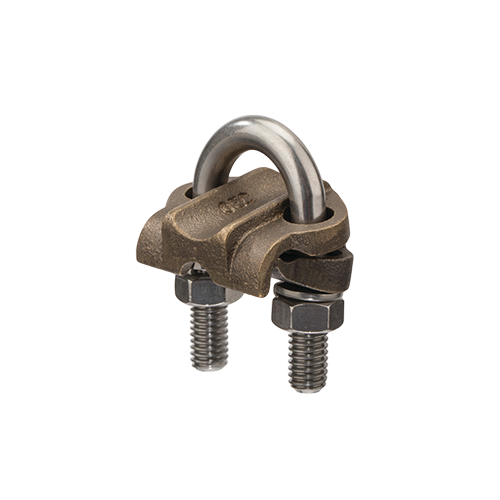

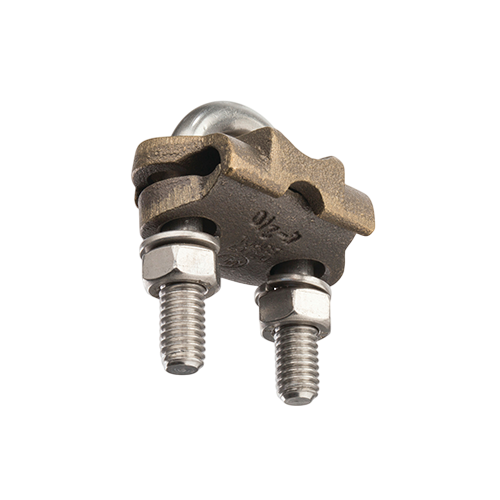

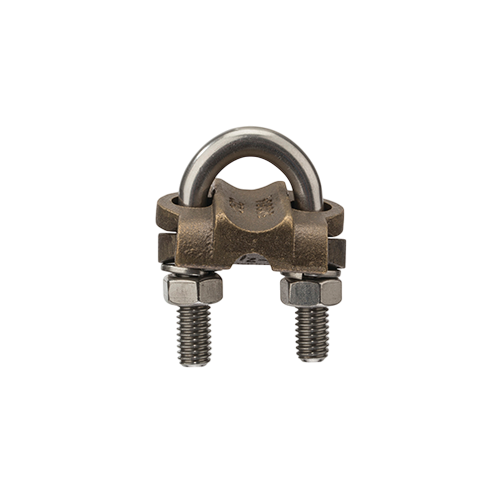

OEC 50064, Copper, Heavy Duty Ground Connectors, Conductor Range 2/0 – 4, 5/8 – 3/4 in Rod Size, 1/2 in Pipe Size

Features

  • One conductor design
  • Suitable for direct burial in earth or concrete

Available on backorder

Compare
Categories: ,
General Specification
Product Description Copper, Heavy Duty Ground Connectors, Conductor Range 2/0 – 4, 1/2 in Pipe Size
Catalog ID 50064
Application Ground Clamp Connector
UPC
Brand OEC
Product Specification
Standard Material Copper
Standard Finish Natural
Number of Ports 1
Wire Orientation Parallel
Dimensions
Product Width 2.00 in
Product Height 2.00 in
Rod Size 5/8 – 3/4 in
Pipe Size 1/2 in
Thread Size 3/8 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
Conductor Size 2/0 – 4 AWG
CU Conductor Size 4 AWG, 3 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG
CU Sol Conductor Range 4 – 2/0 AWG
CU Str Conductor Range 4 AWG, 3 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG
CU Str Conductor Range 4 – 2/0 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
