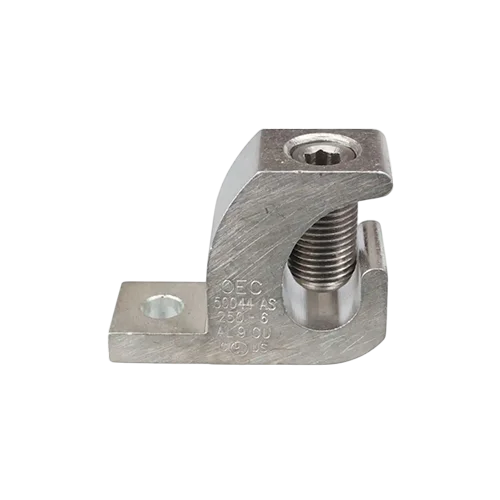

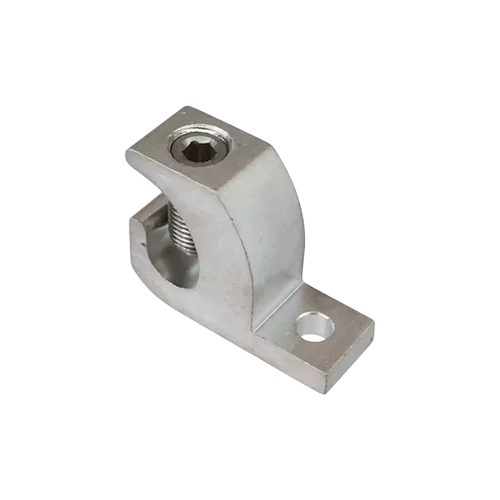

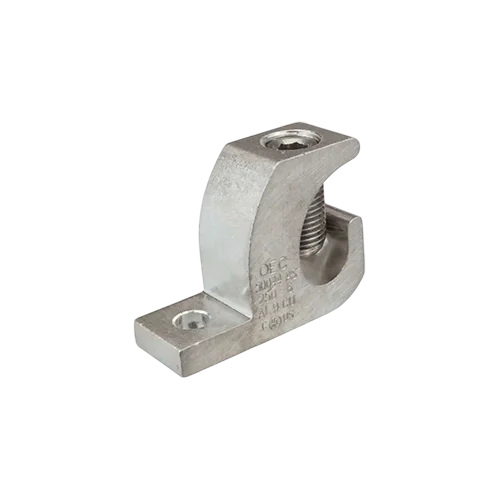

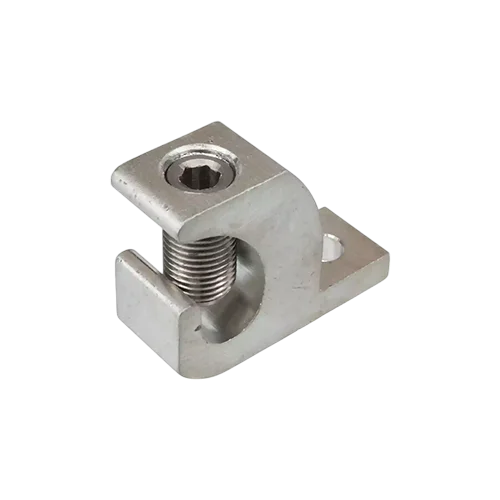

OEC 50044AS, Aluminum Lay In Lug, Conductor Range 250 – 6, 5/16 in Stud, Tin Plated, AL9CU

Features

  • Lay in feature
  • Easy to installation
  • Manufactured from high strength aluminum
  • Tin plating for corrosion resistance
  • Provides ease of installation of continuous loop grounding conductor
  • Suitable for direct burial and for use with copper and aluminum conductors
  • Resists oxidation and corrosion in earth or concrete

Available on backorder

Catalog
Compare
Categories: ,
General Specification
Product Description Aluminum Lay In Lug, Conductor Range 250 – 6, 5/16 in Stud, Tin Plated, AL9CU
Catalog ID 50044AS
UPC
Application Terminating Connector
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Mechanical
Conductor Type Aluminium / Copper
Standard Material Aluminium
Standard Finish Electro Tin Plated
Screw Type Allen Hex
Dimensions
Product Length 2.20 in
Product Width 0.80 in
Product Height 1.70 in
Stud Size 5/16 in
Stud Hole 0.33 in
Strip Length 1.00 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
Conductor Size 250 – 6 AWG
AL Conductor Str Range 250 Kcmil, 3/0 AWG, 2/0 AWG, 1/0 AWG, 1 AWG, 2 AWG, 4 AWG, 6 AWG
AL Conductor Str Size 250 Kcmil – 6 AWG
CU Conductor Sol/Str Range 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 250 Kcmil
CU Conductor Sol/Str Size 6 – 250 AWG
Certifications and Compliance
cULus Yes
CSA Yes
RoHS Yes
