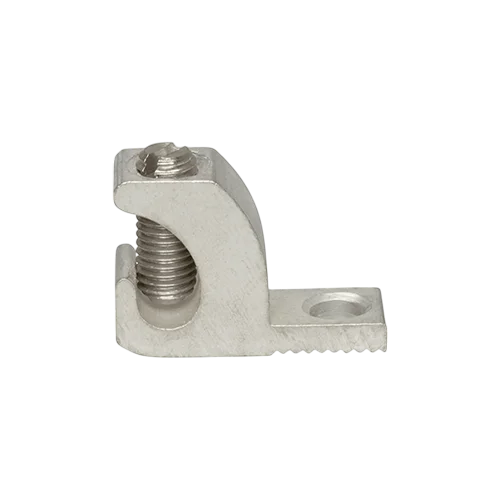

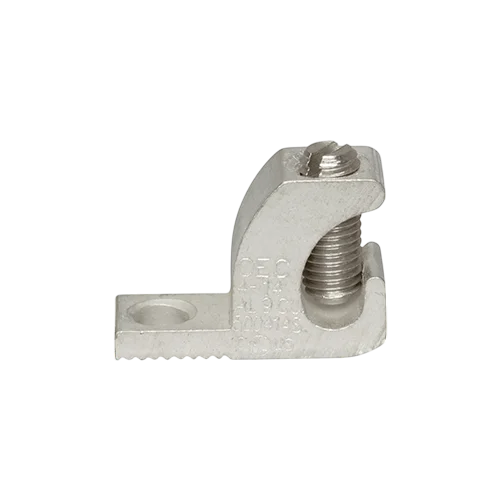

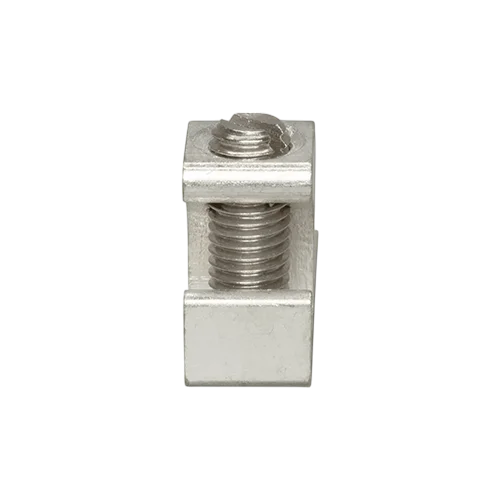

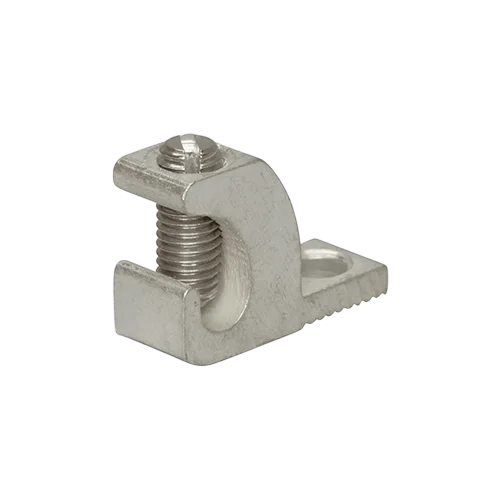

OEC 50041AS, Aluminum Lay In Lug, Conductor Range 4 – 14, #10 Stud, Tin Plated, AL9CU

Features

  • Lay in feature
  • Easy to installation
  • Manufactured from high strength aluminum
  • Tin plating for corrosion resistance
  • Provides ease of installation of continuous loop grounding conductor
  • Suitable for direct burial and for use with copper and aluminum conductors
  • Resists oxidation and corrosion in earth or concrete

Available on backorder

Catalog
Compare
Categories: ,
General Specification
Product Description Aluminum Lay In Lug, Conductor Range 4 – 14, #10 Stud, Tin Plated, AL9CU
Catalog ID 50041AS
UPC
Application Terminating Connector
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Mechanical
Conductor Type Aluminium / Copper
Standard Material Aluminium
Standard Finish Electro Tin Plated
Screw Type Slotted
Dimensions
Product Length 1.06 in
Product Width 0.37 in
Product Height 0.75 in
Stud Size #10
Stud Hole 0.20 in
Strip Length 0.75 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
Conductor Size 4 – 14 AWG
AL Conductor Str Range 8 AWG, 6 AWG, 4 AWG
AL Conductor Str Size 8 – 4 AWG
CU Conductor Sol/Str Range 14 AWG, 12 AWG, 10 AWG, 8 AWG, 6 AWG, 4 AWG
CU Conductor Sol/Str Size 4 – 14 AWG
Certifications and Compliance
cULus Yes
CSA Yes
RoHS Yes
