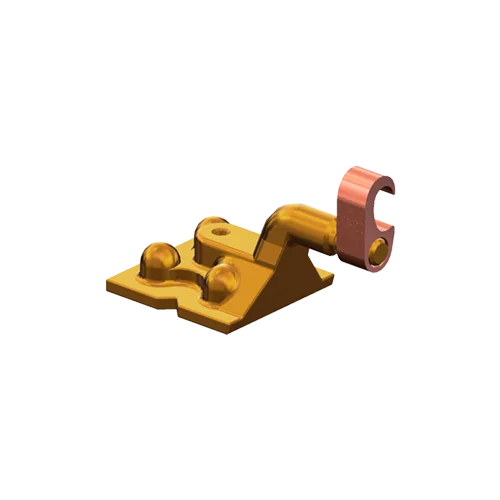

OEC 24304, Copper, Irreversible Compression Plate With Two & Four Stud, Conductor Size 500 – 250 Kcmil, Cu Tap

Features

  • Manufactured from high strength copper alloy
  • Underside tapped hole
  • Prevents oxides from forming
  • Compact size allows for easy taping and insulation of connection
  • Applicable for direct burial

Available on backorder

Compare
Category:
General Specification
Product Description Copper, Irreversible Compression Plate With Two & Four Stud, 500 – 250 Kcmil
Catalog ID 24304
Application Copper Compression Grounding Plate
UPC
Brand OEC
Sub Brand Terrafix
Product Specification
Standard Material Copper
Standard Finish Natural
Number of Crimps 3
Dimensions
Dimension – A Length 6.00 in
Dimension – B Length 4.65 in
Element – A Width 3.25 in
Element – B Width 0.75 in
Striping Length 1 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Range Element – A 500 – 250 Kcmil
CU Conductor Str Size Element – A 500 Kcmil, 400 Kcmil, 350 Kcmil, 300 Kcmil, 250 kcmil
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
