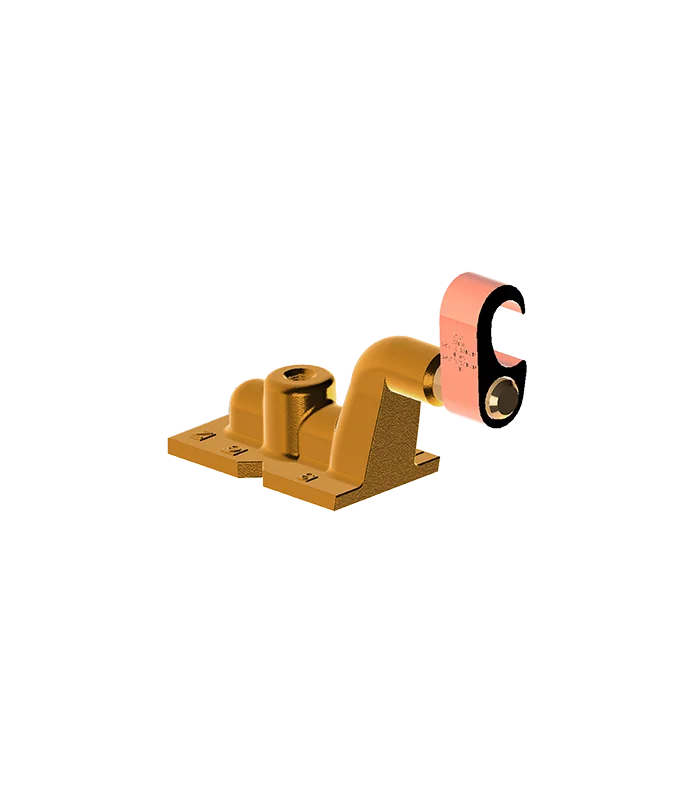

OEC 24301, Copper, Irreversible Compression Plate With Two & Four Stud, Conductor Size 250 Kcmil – 2 AWG, Cu Tap
Available on backorder
| Product Description | Copper, Irreversible Compression Plate With Two & Four Stud, 250 Kcmil – 2 AWG |
| Catalog ID | 24301 |
| Application | Copper Compression Grounding Plate |
| UPC | |
| Brand | OEC |
| Sub Brand | Terrafix |
| Standard Material | Copper |
| Standard Finish | Natural |
| Number of Crimps | 1 |
| Dimension – A Length | 5.79 in |
| Dimension – B Length | 3.62 in |
| Element – A Width | 2.00 in |
| Element – B Width | 0.75 in |
| Striping Length | 1 in |
| Voltage – Maximum | 35000 |
| Voltage Rating | 35 kV |
| Temperature Rating | 90°C |
| CU Conductor Range Element – A | 250 Kcmil – 2 AWG |
| CU Conductor Str Size Element – A | 250 kcmil, 3/0 AWG, 2/0 AWG, 1/0 AWG, 1 AWG, 2 AWG |
| cULus | Yes |
| Standard | 467A/B |
| CSA | Yes |
| RoHS | Yes |
