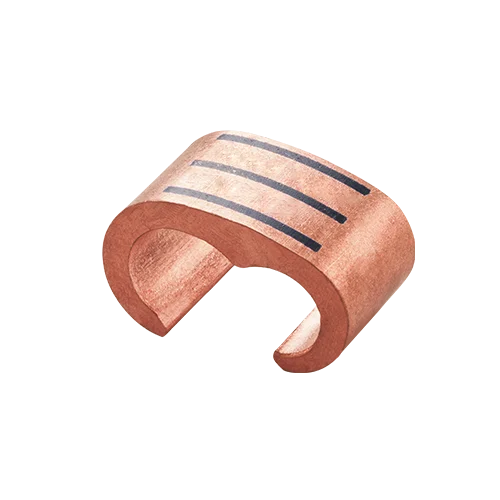

OEC 24108, Copper, Irreversible Compression Connectors C-Taps, Run Conductor Range 300 – 500 Kcmil, 300 Kcmil – 250 Kcmil Tap Conductor Range, Rod

Features

  • Manufactured from high conductivity copper
  • Range taking
  • Direct burial in earth or concrete
  • Low installation cost
  • Color coded for proper crimp die selection
  • Provides maximum conductivity and low contact resistance
  • Provides easy identification and tooling recommendation
  • Compact size allows for easy taping and insulation of connection
  • Applicable for direct burial

Available on backorder

Compare
Category:
General Specification
Product Description Copper, Irreversible Compression Connectors C-Taps, Conductor Size 300 – 500 Kcmil
Catalog ID 24108
UPC
Application For Direct Burial Cables
Brand OEC
Product Specification
Connector Type C-Taps
Standard Material Copper
Standard Finish Natural
Dimensions
Product Length 2.90 in
Product Width 1.34 in
Product Height 1.10 in
Strip Length 1.5 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Run Size 300 Kcmil – 500 Kcmil
CU Conductor Run Range 300 kcmil, 350 kcmil, 400 kcmil, 500 kcmil
CU Conductor Tap Size 300 Kcmil – 250 Kcmil
CU Conductor Run Range 300 kcmil, 250 kcmil
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
