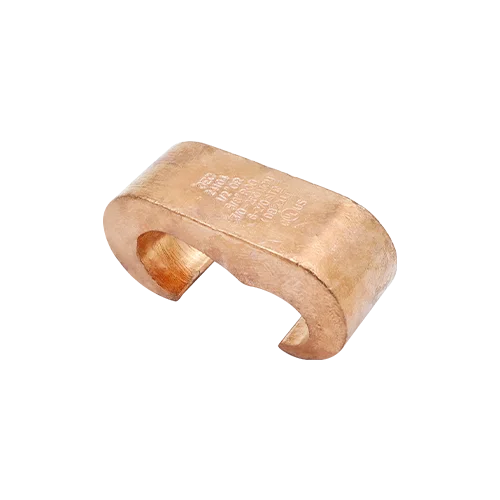

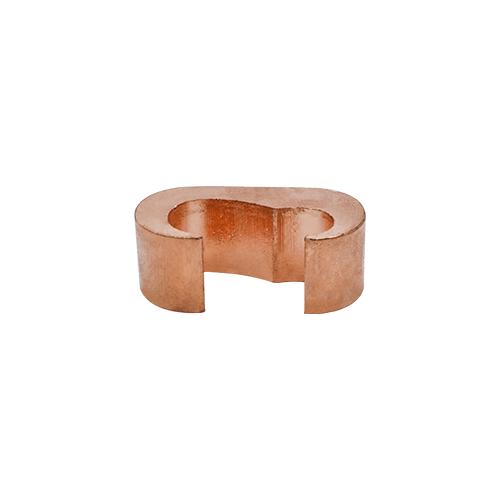

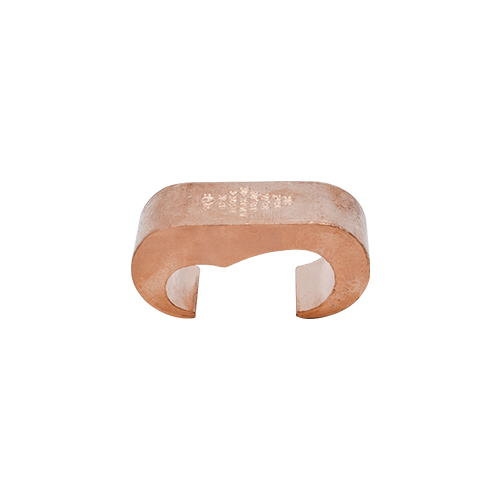

OEC 24104, Copper, Irreversible Compression Connectors C-Taps, Run Conductor Range 3/0 AWG – 250 Kcmil, 6 AWG – 2/0 AWG Tap Conductor Range, 1/2 – 5/8 in Rod

Features

  • Manufactured from high conductivity copper
  • Range taking
  • Direct burial in earth or concrete
  • Low installation cost
  • Color coded for proper crimp die selection
  • Provides maximum conductivity and low contact resistance
  • Provides easy identification and tooling recommendation
  • Compact size allows for easy taping and insulation of connection
  • Applicable for direct burial

Available on backorder

Compare
Category:
General Specification
Product Description Copper, Irreversible Compression Connectors C-Taps, Conductor Size 3/0 AWG – 250 Kcmil
Catalog ID 24104
UPC
Application For Direct Burial Cables
Brand OEC
Product Specification
Connector Type C-Taps
Standard Material Copper
Standard Finish Natural
Dimensions
Product Length 1.97 in
Product Width 0.93 in
Product Height 0.75 in
Rod Size 1/2 – 5/8 in
Strip Length 1 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Run Size 3/0 AWG – 250 Kcmil
CU Conductor Run Range 3/0 AWG, 250 Kcmil
CU Conductor Tap Size 6 – 2/0 AWG
CU Conductor Run Range 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
