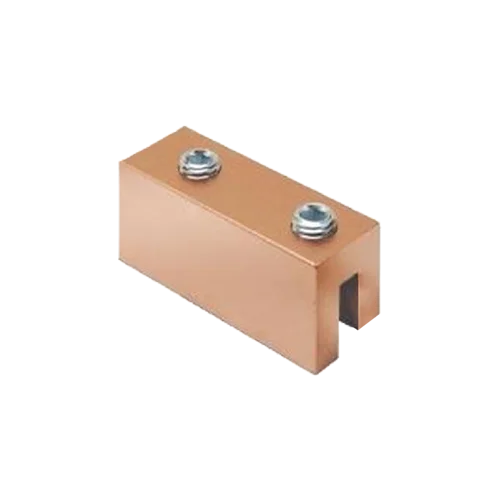

OEC 23502, Copper, Irreversible Grounding Link, Conductor Size 2/0 – 4/0 AWG

Features

  • Irreversible compression ground connector allows attached to a structural steel
  • Made of high conductivity
  • Prevents oxides from forming
  • Applicable for direct burial

Available on backorder

Compare
Category:
General Specification
Product Description Copper, Irreversible Grounding Link, Conductor Size 2/0 – 4/0 AWG
Catalog ID 23502
UPC
Application Grounding
Brand OEC
Product Specification
Standard Material Copper
Standard Finish Natural
Dimensions
Product Length 3.00 in
Rod Size 0.250 – 0.338 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Size 2/0 – 4/0 AWG
CU Conductor Range 2/0 AWG, 3/0 AWG, 4/0 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
