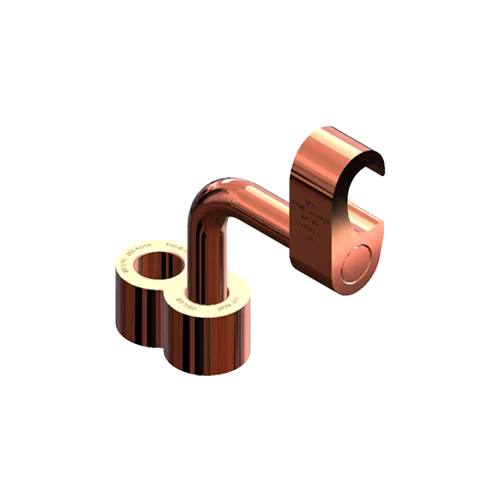

OEC Terrafix® 23180-41, Copper, Irreversible Compression Cross Connector Fig 8-6, Conductor Size 500 – 250 Kcmil, 1 Ground Rod Cu Tap
Available on backorder
| Product Description | Copper, Compression Cross Connectors Fig 8-6, 500 – 250 Kcmil or 1 |
| Catalog ID | 23180-41 |
| Application | For Direct Burial in Earth and Concrete |
| UPC | |
| Brand | OEC |
| Sub Brand | Terrafix |
| Connector Type | Tap |
| Standard Material | Copper |
| Standard Finish | Natural |
| Dimension – A Length | 2.63 in |
| Dimension – B Length | 2.63 in |
| Element – A Width | 1.10 in |
| Element – B Width | 0.88 in |
| Striping Length | 1 in |
| Connecting Rod | 1/2 in |
| Voltage – Maximum | 35000 |
| Voltage Rating | 35 kV |
| Temperature Rating | 90°C |
| CU Conductor Range Element – A | 500 – 250 Kcmil |
| CU Conductor Str Size Element – A | 500 Kcmil, 400 Kcmil, 350 Kcmil, 300 Kcmil, 250 kcmil |
| cULus | Yes |
| Standard | 467A/B |
| CSA | Yes |
| RoHS | Yes |
