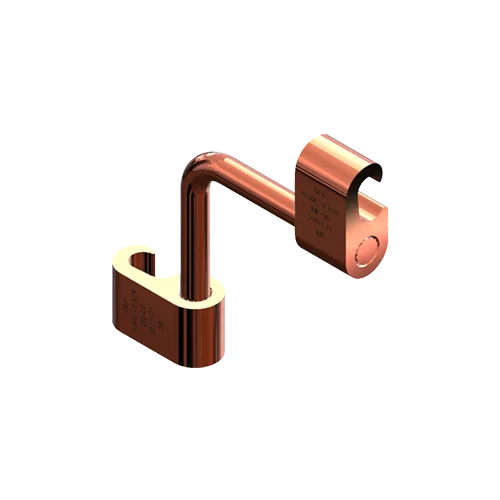

OEC Terrafix® 23179-79, Copper, Irreversible Compression Cross Connectors Fig 6-6, Conductor Size 500 – 250 Kcmil, 5/8 – 3/4 Ground Rod, 500 – 250 Kcmil Cu Tap

Features

  • Manufactured from high strength copper alloy
  • Range taking
  • Provides maximum conductivity. Suitable for direct burial.
  • Prevents oxides from forming
  • Provides easy identification and tooling recommendation
  • Compact size allows for easy taping and insulation of connection

Available on backorder

Compare
Category:
General Specification
Product Description Copper, Compression Cross Connectors Fig 6-6, 500 – 250 Kcmil or 500 – 250 Kcmil
Catalog ID 23179-79
Application For Direct Burial in Earth and Concrete
UPC
Brand OEC
Sub Brand Terrafix
Product Specification
Connector Type Tap
Standard Material Copper
Standard Finish Natural
Dimensions
Dimension – A Length 2.94 in
Dimension – B Length 2.94 in
Element – A Width 0.75 in
Element – B Width 0.75 in
Striping Length 1 in
Connecting Rod 3/4 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Range Element – A 500 Kcmil – 250 Kcmil
CU Conductor Str Size Element – A 500 Kcmil, 400 Kcmil, 350 Kcmil, 300 Kcmil, 250 kcmil
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
