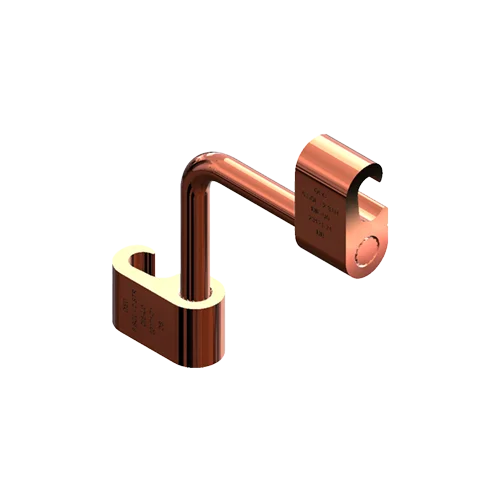

OEC Terrafix® 23177-71, Copper, Irreversible Compression Cross Connectors Fig 6-6, Conductor Size 500 – 250 Kcmil, 5/8 – 3/4 Ground Rod, 2 – 6 AWG Cu Tap
Available on backorder
| Product Description | Copper, Compression Cross Connectors Fig 6-6, 500 – 250 Kcmil or 2 – 6 AWG |
| Catalog ID | 23177-71 |
| Application | For Direct Burial in Earth and Concrete |
| UPC | |
| Brand | OEC |
| Sub Brand | Terrafix |
| Connector Type | Tap |
| Standard Material | Copper |
| Standard Finish | Natural |
| Dimension – A Length | 2.53 in |
| Dimension – B Length | 2.53 in |
| Element – A Width | 0.75 in |
| Element – B Width | 0.75 in |
| Striping Length | 1 in |
| Connecting Rod | 5/16 in |
| Voltage – Maximum | 35000 |
| Voltage Rating | 35 kV |
| Temperature Rating | 90°C |
| CU Conductor Range Element – A | 500 Kcmil – 250 Kcmil |
| CU Conductor Str Size Element – A | 500 Kcmil, 400 Kcmil, 350 Kcmil, 300 Kcmil, 250 kcmil |
| cULus | Yes |
| Standard | 467A/B |
| CSA | Yes |
| RoHS | Yes |
