OE-01-PK2

23175-35

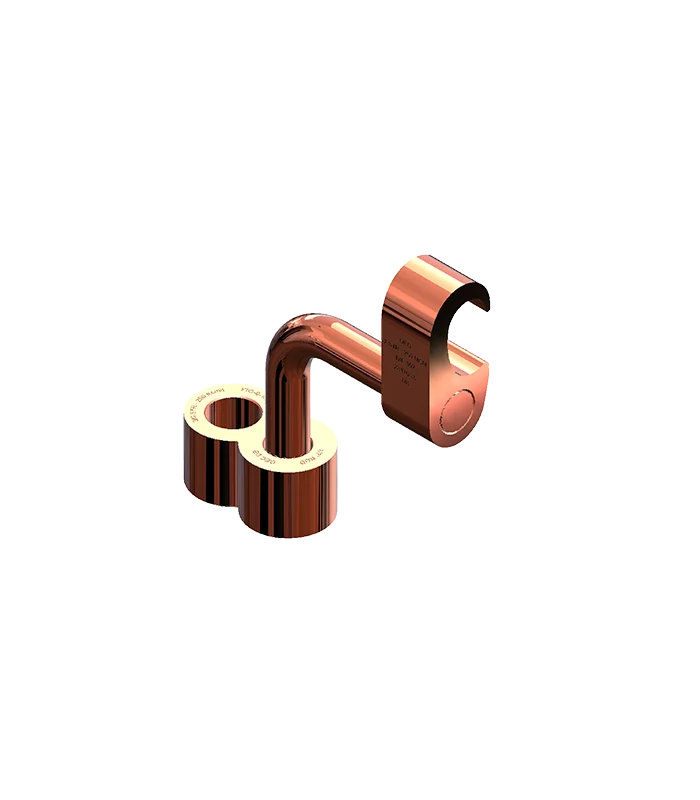

OEC Terrafix® 23175-35, Copper, Irreversible Compression Cross Connector Fig 8-6, Conductor Size 250 Kcmil – 2 AWG or 1/2, 5/16 Ground Rod Cu Tap

Features

  • Manufactured from high strength copper alloy
  • Provides maximum conductivity
  • Prevents oxides from forming
  • Provides easy identification and tooling recommendation
  • For use with galvanized steel ground rod
  • Compact size allows for easy taping and insulation of connection

Available on backorder

Compare
Category:
General Specification
Product Description Copper, Compression Cross Connectors Fig 8-6, 250 Kcmil – 2 AWG or 1/2
Catalog ID 23175-35
Application For Direct Burial in Earth and Concrete
UPC
Brand OEC
Sub Brand Terrafix
Product Specification
Connector Type Tap
Standard Material Copper
Standard Finish Natural
Dimensions
Dimension – A Length 2.53 in
Dimension – B Length 2.53 in
Element – A Width 0.75 in
Element – B Width 0.88 in
Striping Length 1 in
Connecting Rod 5/16 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Range Element – A 250 Kcmil – 2 AWG
CU Conductor Str Size Element – A 250 kcmil, 3/0 AWG, 2/0 AWG, 1/0 AWG, 1 AWG, 2 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
