23174-71

23171-71

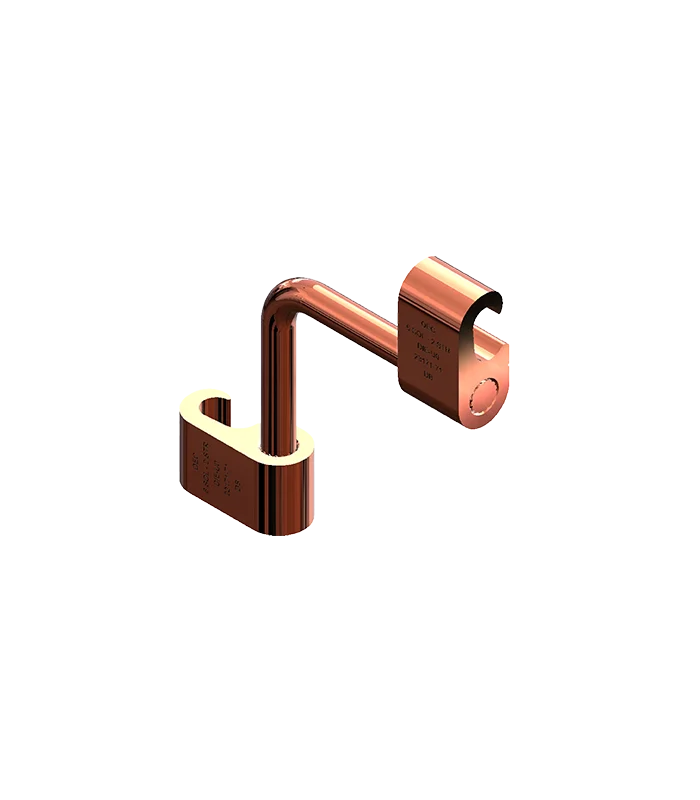

OEC Terrafix® 23171-71, Copper, Irreversible Compression Cross Connectors Fig 6-6, Conductor Size 2 – 6 AWG, 2 – 6 AWG Cu Tap

Features

  • Manufactured from high strength copper alloy
  • Range taking
  • Provides maximum conductivity. Suitable for direct burial.
  • Prevents oxides from forming
  • Provides easy identification and tooling recommendation
  • Compact size allows for easy taping and insulation of connection

Available on backorder

Compare
Category:
General Specification
Product Description Copper, Compression Cross Connectors Fig 6-6, 2 – 6 AWG or 2 – 6 AWG
Catalog ID 23171-71
Application For Direct Burial in Earth and Concrete
UPC
Brand OEC
Sub Brand Terrafix
Product Specification
Connector Type Tap
Standard Material Copper
Standard Finish Natural
Dimensions
Dimension – A Length 2.53 in
Dimension – B Length 2.53 in
Element – A Width 0.75 in
Element – B Width 0.75 in
Striping Length 1 in
Connecting Rod 5/16 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Range Element – A 2 – 6 AWG
CU Conductor Str Size Element – A 2 AWG, 4 AWG, 6 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
