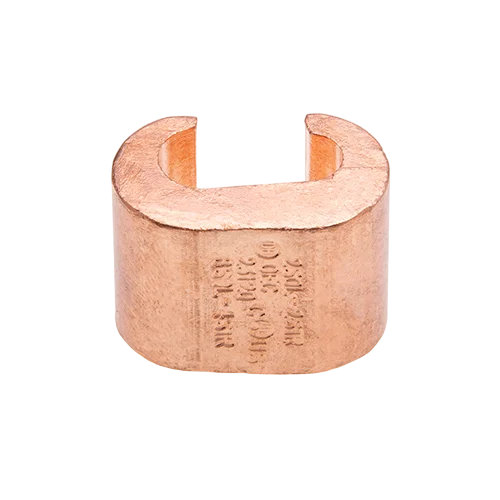

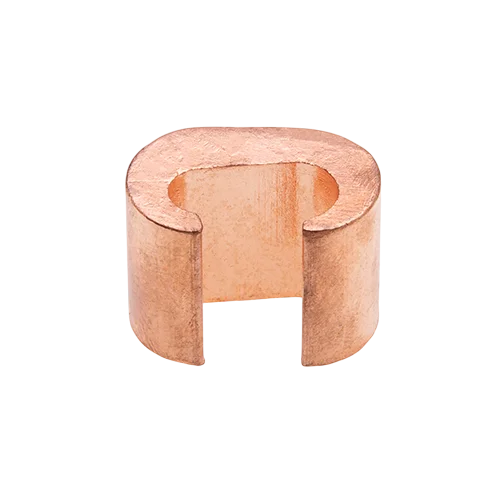

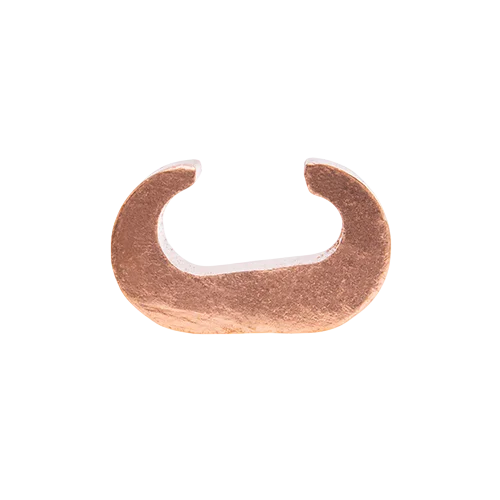

OEC 23120, Copper, Compression C Tap, Run 2 AWG, Tap 4 AWG, Color Coded, Die Index, Cu Only

Features

  • Manufactured from high conductivity copper
  • Range taking
  • Provides maximum conductivity and low contact resistance
  • Low installation cost
  • Compact size allows for easy taping and insulation of connection
  • Applications include copper tapping, Splicing/pig tailing
  • Allows for 2 continuous parallel conductor

Available on backorder

Compare
Category:
General Specification
Product Description Run 4 AWG, Tap 4 AWG, Copper, Compression C Tap
Catalog ID 23120
UPC 840449609934
Application Wire Tap
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type C-TAP
Conductor Material Copper Only
Standard Material Copper
Standard Finish Natural
Color
Dimensions
Product Length 0.75 in
Product Width 0.60 in
Product Height 0.98 in
Strip Length 3/4 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
Conductor Size 2 AWG – 4 AWG
CU Str Run Range 2 Str
CU Str Run 2 Str
CU Str Tap Range 4 Str
CU Str Tap 4 Str
Certifications and Compliance
cULus Yes
Standard 486A/B
CSA Yes
RoHS Yes
