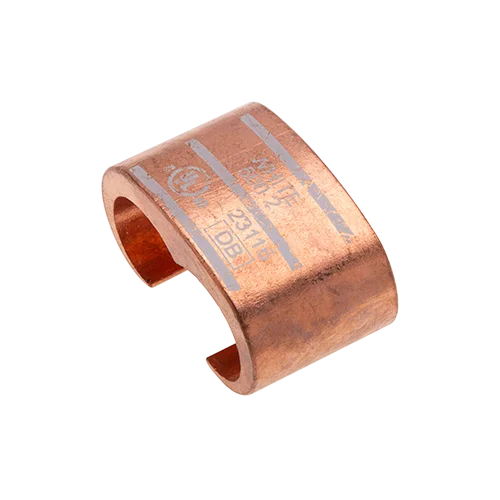

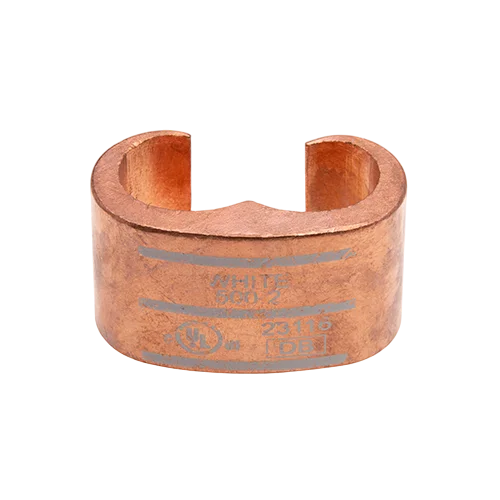

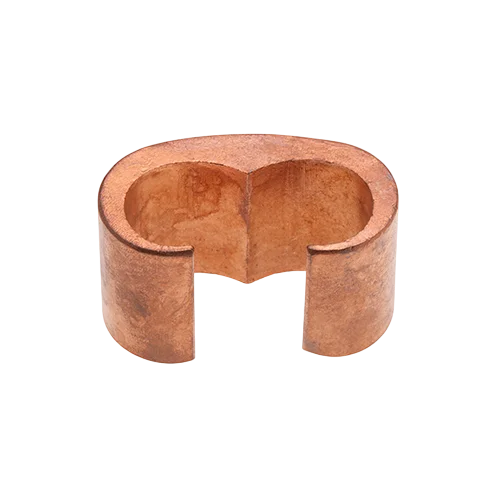

OEC 23116, Copper, Compression C Tap-E Style, Run 500 Kcmil – 350 Kcmil, Tap 500 Kcmil – 2 AWG, Color Coded, Die Index, Cu Only

Features

  • Color coded for proper crimp die selection
  • Low installation cost
  • Compact size allows for easy taping and insulation of connection

Available on backorder

Compare
Category:
General Specification
Product Description Run 500 Kcmil – 250 Kcmil, Tap 500 Kcmil – 2 AWG, Copper, Compression C Tap-E Style
Catalog ID 23116
UPC 840449609477
Application Making Tap or Parallel Copper Connections
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type C-TAP
Conductor Material Copper Only
Standard Material Copper
Standard Finish Natural
Color White
Dimensions
Product Length 1.18 in
Product Width 1.18 in
Product Height 2.20 in
Strip Length 1-5/16 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
Conductor Size 500 Kcmil – 2 AWG
CU Str Run 500 Kcmil – 350 Kcmil
CU Str Run Range 500 Kcmil – 350 Kcmil
CU Str Tap 500 Kcmil – 2 Str
CU Str Tap Range 500 Kcmil – 2 Str
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
