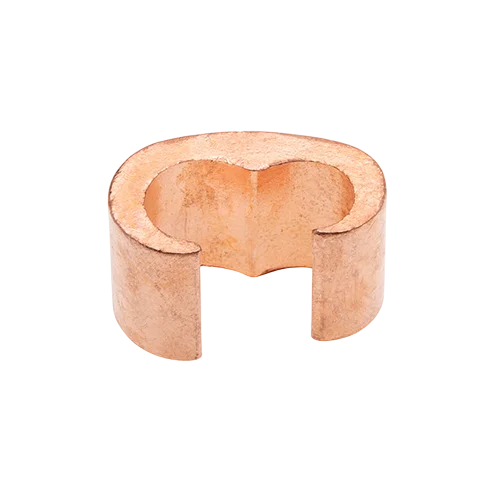

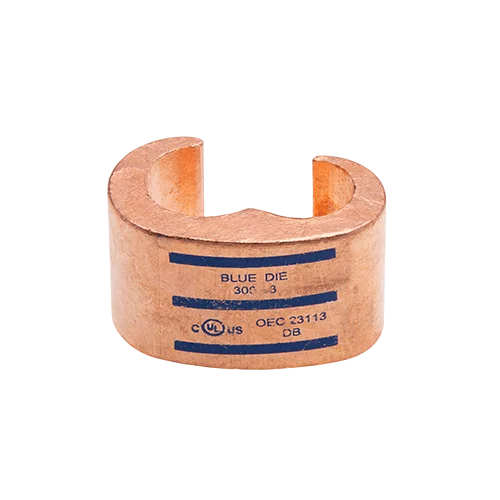

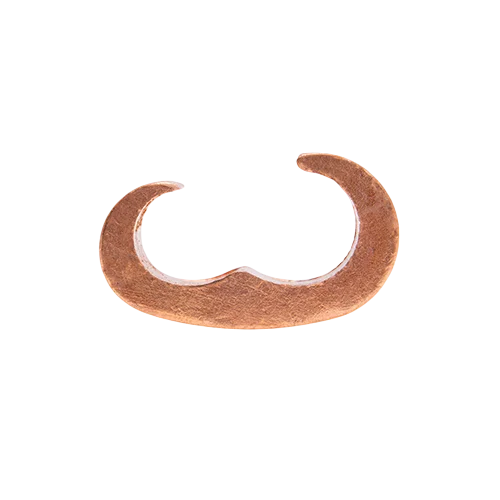

OEC 23113, Copper, Compression C Tap-E Style, Run 300 Kcmil – 2/0 AWG, Tap 4/0 AWG – 8 AWG, Color Coded, Die Index, Cu Only

Features

  • Color coded for proper crimp die selection
  • Low installation cost
  • Compact size allows for easy taping and insulation of connection

Available on backorder

Compare
Category:
General Specification
Product Description Run 250 Kcmil – 2/0 AWG, Tap 4/0 AWG – 8 AWG, Copper, Compression C Tap-E Style
Catalog ID 23113
UPC 840449609309
Application Making Tap or Parallel Copper Connections
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type C-TAP
Conductor Material Copper Only
Standard Material Copper
Standard Finish Natural
Color Blue
Dimensions
Product Length 0.98 in
Product Width 0.98 in
Product Height 1.67 in
Strip Length 1-1/8 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
Conductor Size 300 Kcmil – 8 AWG
CU Str Run 300 Kcmil – 2/0 Str
CU Str Run Range 300 Kcmil – 2/0 Str
CU Str Tap 4/0 Str – 8 Str
CU Str Tap Range 4/0 Str – 8 Str
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
