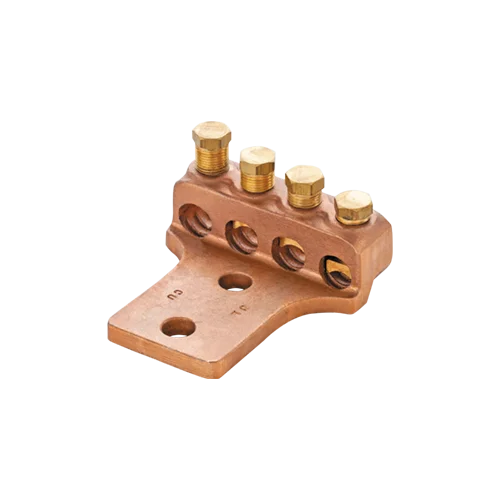

OEC 22528, Bronze, Mechanical Lugs, Conductor Range 350 – 1/0, 4 Port, 2 Hole, 1/2 in Stud, Cu Only

Features

  • Manufactured from high strength copper alloy
  • Range taking
  • UL486 A/B Listed for Wire Connectors
  • Rated for copper conductor only
  • Provides maximum conductivity and strength

Available on backorder

Compare
Category:
General Specification
Product Description Bronze, Mechanical Lugs, Conductor Range 350 – 1/0
Catalog ID 22528
UPC
Application Offset Lugs
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Mechanical
Conductor Type Copper
Standard Material Copper
Standard Finish Natural
Screw Type Allen Hex Bolt
Dimensions
Product Length 4.48 in
Product Width 3.85 in
Product Height 1.47 in
Bolt Size 1/2 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Sol/Str Size 350 Kcmil – 1/0 AWG
Certifications and Compliance
cULus Yes
Standard 486A/B
CSA Yes
RoHS Yes
