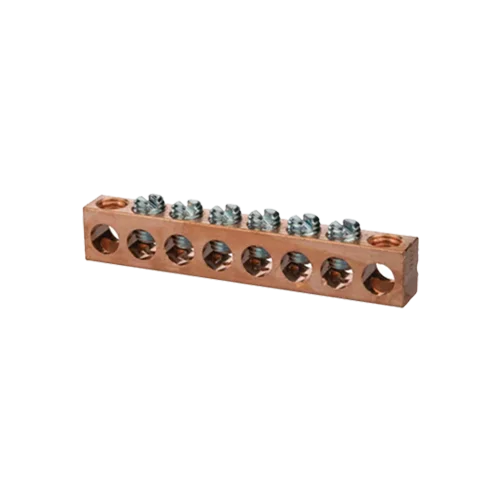

OEC 22422G, Copper, Neutral Bar, Conductor Range 4 – 14, 6 Circuits, Cu Only

Features

  • Manufactured from high strength Copper alloy
  • UL486A/B Listed for Wire Connectors
  • UL467 Listed for grounding and bonding applications
  • Suitable for use with copper conductors
  • Provides low contact resistance

Available on backorder

Compare
Categories: ,
General Specification
Product Description Copper, Neutral Bar, Conductor Range 4 – 14, 6 Circuits
Catalog ID 22422G
UPC
Application Ground Neutral
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Mechanical
Conductor Type Copper
Standard Material Copper
Standard Finish Electro Tin Plated
Screw Type Robertson
Dimensions
Product Length 2.56 in
Product Width 0.31 in
Product Height 0.44 in
No of Holes 8
No of Circuit 6
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Sol/Str Size 4 – 14 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
