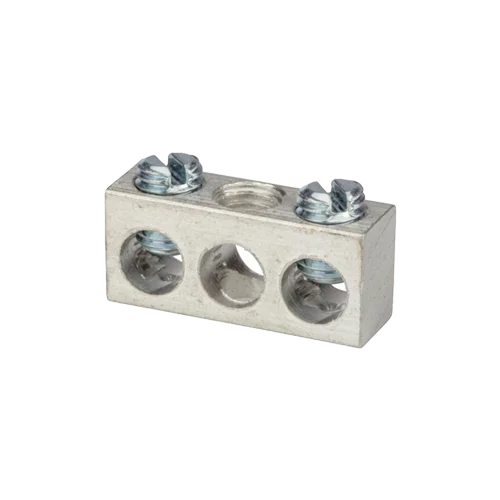

OEC 22417, Aluminum, Neutral Bar, Dual Rated, Conductor Range 2/0 – 14, 2 Circuits, Tin Plated, AL9CU

Features

  • Manufactured from high strength aluminum alloy
  • Electro-Tin plated for corrosion resistance
  • UL486A/B Listed for Wire Connectors
  • UL467 Listed for grounding and bonding applications
  • CSA certified to standard 22.2
  • Suitable for use with either copper or aluminum conductors
  • Provides low contact resistance

Available on backorder

Compare
Category:
General Specification
Product Description Aluminum, Neutral Bar, Dual Rated, Conductor Range 2/0 – 14, 2 Circuits
Catalog ID 22417
UPC
Application Neutral Bar
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Mechanical
Conductor Type Aluminium / Copper
Standard Material Aluminium
Standard Finish Electro Tin Plated
Screw Type Allen Hex
Dimensions
Product Length 1.75 in
Product Width 0.56 in
Product Height 0.75 in
No of Holes 3
No of Circuit 2
Mounting Hole Position 2
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
Conductor Size 2/0 – 14 AWG
AL Conductor Str Range 2/0 AWG, 1/0 AWG, 1 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG, 14 AWG
AL Conductor Str Size 2/0 – 12 AWG
CU Conductor Sol/Str Range 2/0 AWG, 1/0 AWG, 1 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG, 10 AWG, 12 AWG
CU Conductor Sol/Str Size 2/0 – 12 AWG
Certifications and Compliance
Standard 486A/B, UL467
RoHS Yes
