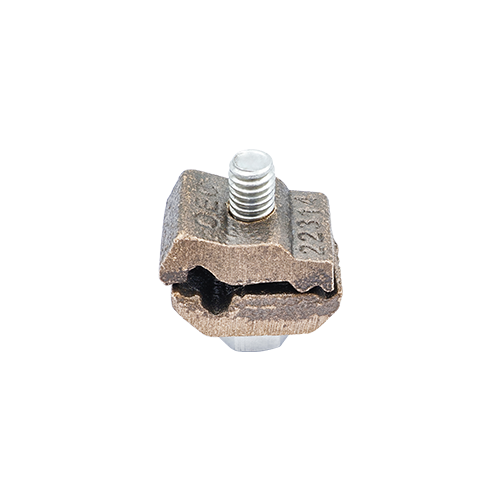

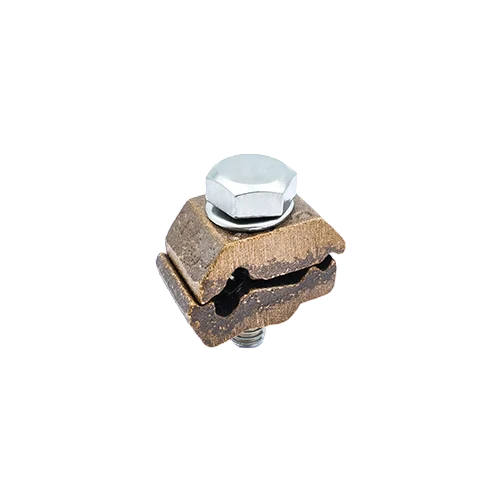

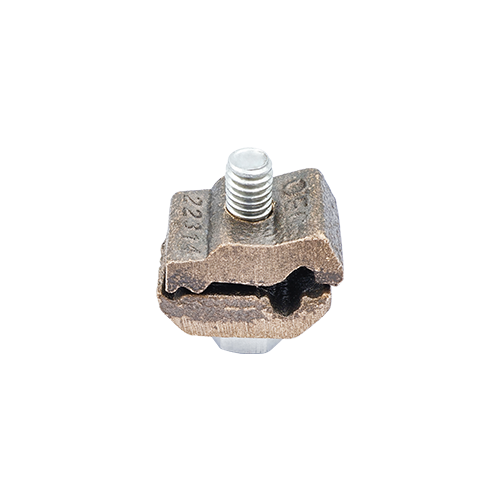

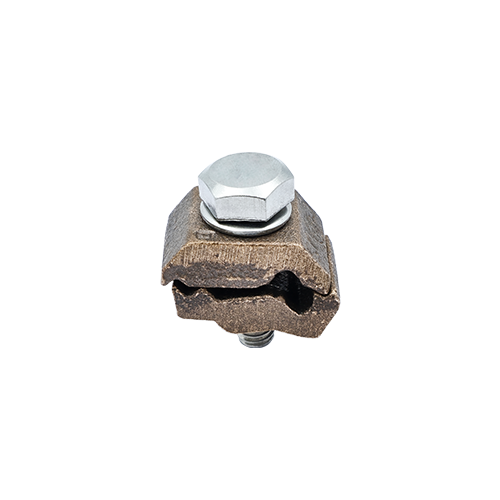

OEC 22314, Copper, Ground, Rebar Clamp, Conductor Range 6 – 8, 3/8 in Rebar Size

Features

  • GC & GCM suitable for direct burial in concrete or ground
  • GC separates cable from bar
  • GCM clamps cables directly on bar surface

Available on backorder

Compare
Categories: ,
General Specification
Product Description Copper, Ground, Rebar Clamp, Conductor Range 6 – 8, 3/8 in Rebar Size
Catalog ID 22314
UPC
Application Ground Clamp Connector
Brand OEC
Product Specification
Connector Ground
Standard Material Cast Copper Alloy
Standard Finish Natural
Dimensions
Product Length 1.14 in
Product Width 0.74 in
Product Height 0.75 in
Rebar Size 3/8 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Range (Primary, run, main, line) 6 – 8 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
