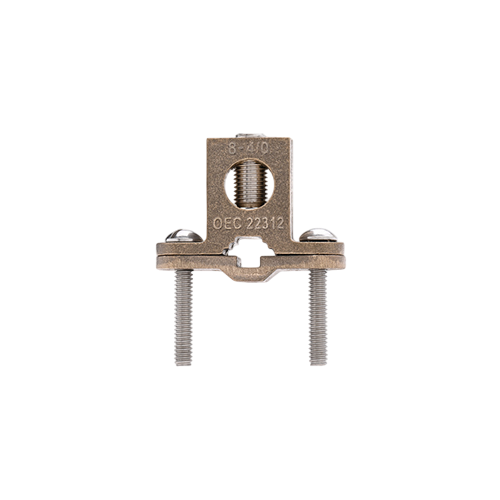

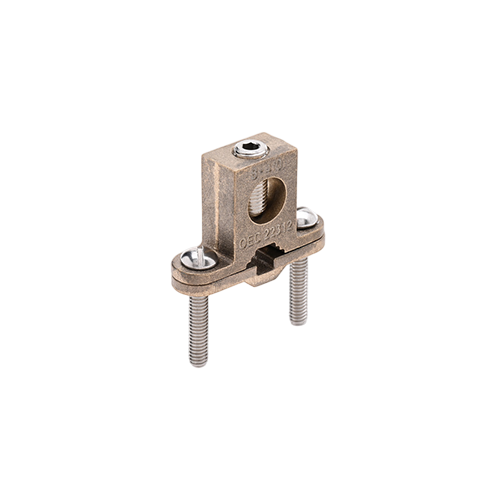

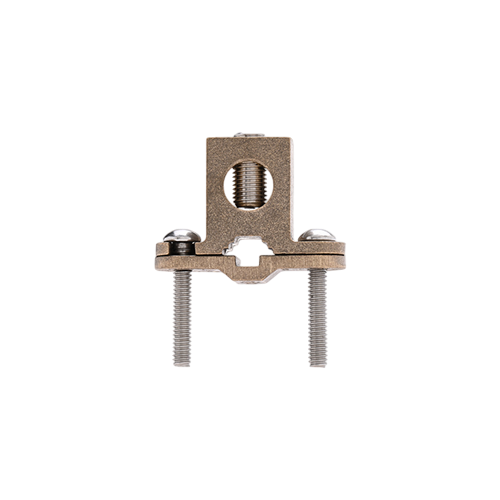

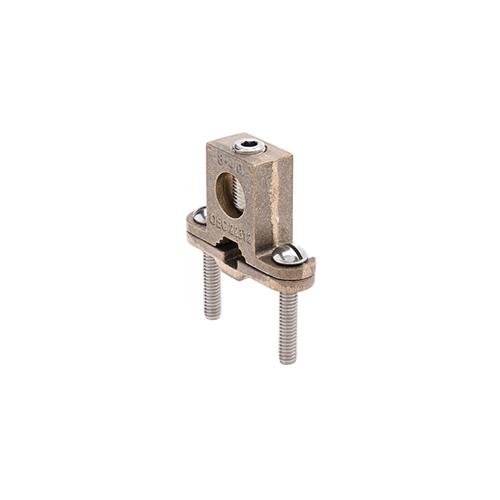

OEC 22312, Copper, Ground, Rebar Clamp, Conductor Range 8 – 4/0, 3/8 – 1 Rebar Size, 1/2 – 1 Ground Rod Size, 1/2 – 1 Pipe Size

Features

  • Connectors are suitable for direct burial application in earth and concrete
  • Provides maximum conductivity and strength

Available on backorder

Compare
Categories: ,
General Specification
Product Description Copper, Ground, Rebar Clamp, Conductor Range 8 – 4/0, 3/8 – 1 Rebar Size, 1/2 – 1 Ground Rod Size, 1/2 – 1 Pipe Size
Catalog ID 22312
UPC
Application Ground Clamp Connector
Brand OEC
Product Specification
Standard Material Cast Copper Alloy
Standard Finish Natural
Dimensions
Product Length 2.36 in
Product Width 0.67 in
Product Height 2.95 in
Pipe Size 1/2 – 1 in
Rebar Size 3/8 – 1 in
Rod Size 1/2 – 1 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Range (Primary, run, main, line) 8 – 4/0 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
