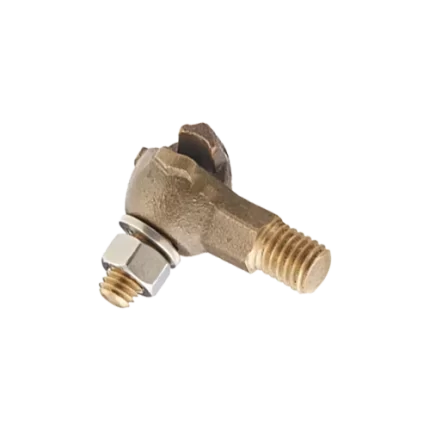

50088
Back to products
22302-01

22301-01

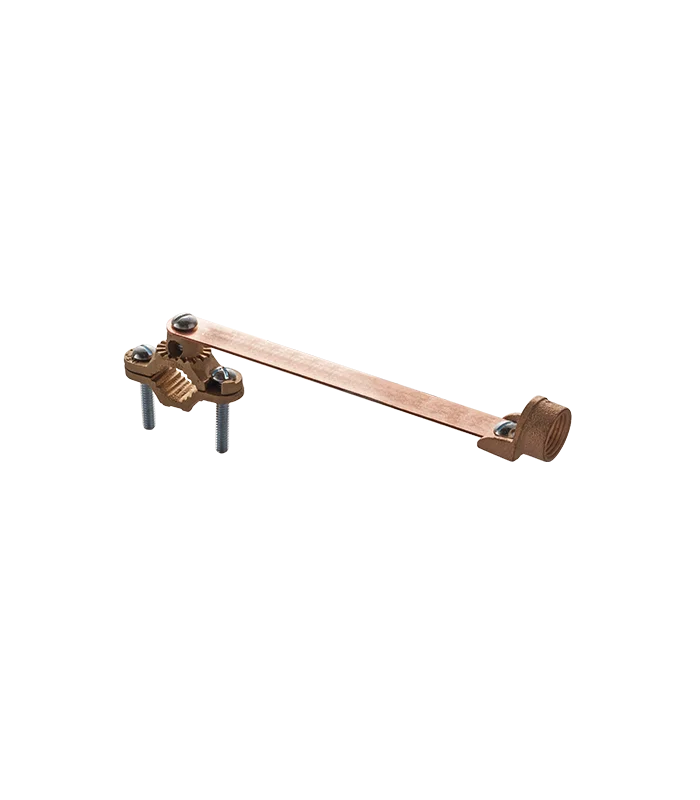

OEC 22301-01, Ground Pipe Clamp With Extended Adapter (Economy), (Degree Swing), Conductor Range 10 – 2, 1/2 – 1 in Pipe Size, 1/2 in HUB Size

Features

  • Supplied with steel screw plated for corrosion resistance
  • Assembled with threaded adapter
  • Application included copper tapping, Splicing / pig tailing

Available on backorder

Compare
Category:
General Specification
Product Description Ground Pipe Clamp With Extended Adapter (Economy), (Degree Swing), Conductor Range10 – 2
Catalog ID 22301-01
UPC
Application For Grounding Rigid Conduit Systems
Brand OEC
Product Specification
Connector WaterPipe
Standard Material Copper
Standard Finish Natural
Dimensions
Product Length 10.01 in
Product Width 1.07 in
Product Height 3.15 in
Pipe Size 1/2 – 1 in
Hub Size 1/2 in
Electrical Ratings
Voltage Rating 600 V
Temperature Rating
Temperature Rating 90°C
Conductor Related
CU Conductor Size 10 – 2 AWG
Certifications and Compliance
cULus Yes
Standard 467A/B
CSA Yes
RoHS Yes
