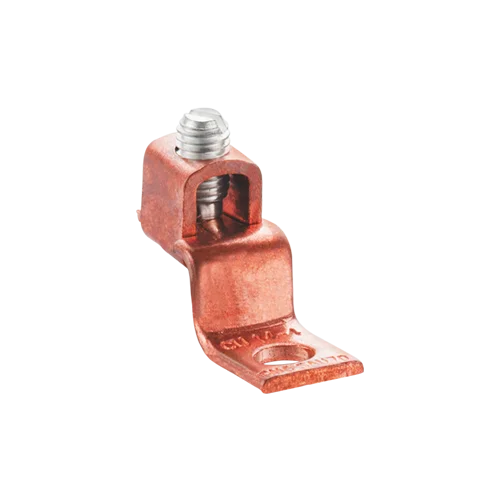

OEC 21009, Copper, Mechanical Offset Lug, Conductor Range 1000 – 600, 1 Port, 1 Hole, 1/2 in Stud, Cu Only

Features

  • Manufactured from high strength copper alloy
  • Electro-Tin plated for corrosion resistance
  • Range taking
  • UL486 A/B Listed for Wire Connectors
  • Rated for copper conductor only
  • Provides maximum conductivity and strength

Available on backorder

Compare
Category:
General Specification
Product Description Copper, Mechanical Offset Lug, Conductor Range 1000 – 600
Catalog ID 21009
UPC
Application Offset Lugs
Brand OEC
Inner Box Quantity
Master Box Quantity
Product Specification
Connector Type Mechanical
Conductor Type Copper
Standard Material Copper
Standard Finish Natural
Screw Type Allen Hex
Dimensions
Product Length 4.84 in
Product Width 2.00 in
Product Height 2.30 in
Bolt Size 1/2 in
Electrical Ratings
Voltage – Maximum 35000
Voltage Rating 35 kV
Temperature Rating
Temperature Rating 90?C
Conductor Related
CU Conductor Sol/Str Size 1000 – 600 Kcmil
Certifications and Compliance
cULus Yes
Standard 486A/B
CSA Yes
RoHS Yes
